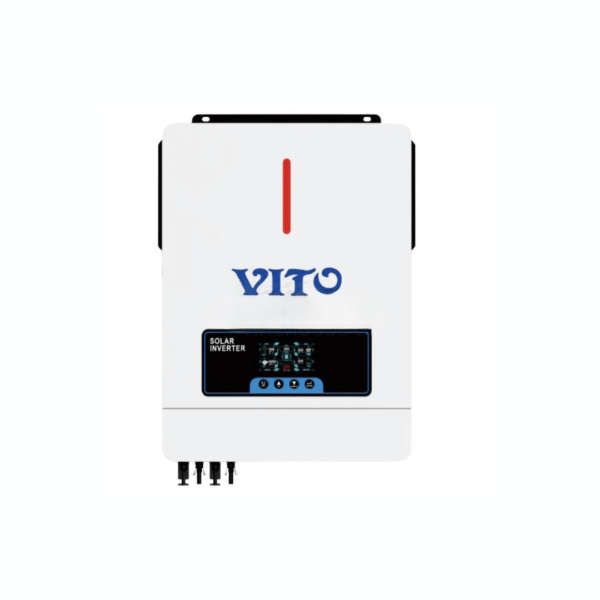

Hybrid Inverter 10.2KVA 10200 Watt MPPT Vito SH10.2K48
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
NOTE: FAN ALWAYS ON
Features
• Pure sine wave inverter
• Configurable input voltage range for home appliances and personal computers via LCD setting
• Configurable battery charging current based on applications via LCD setting
Configurable AC/Solar Charger priority via LCD setting
• Compatible to mains voltage or generator power
• Auto restart while AC is recovering
• Overload/ Over temperature/ short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function
• WIFI/GPRS (Optional)
• Can connect to lithium battery
3.2 Basic System Architecture
The following illustration shows basic application for this inverter/charger. It also includes following devices to have a complete running system:
• Generator or Utility.
• PV modules
PV INPUT:
Max. PV Array Open Circuit Voltage 500Vdc
PV Array MPPT Voltage Range 90Vdc~450Vdc
RGB Light
Battery Mode: Red Light
Utility Mode: Blue Light
PV Mode: Purple Light
Size:
618 x 463 x 205
16.9kg
What's in the box
1 x Inverter
1 x User Manual
24 Months Repair Warranty
