Features:
- Humanization LCD
- PWM 3-stage charging
- Load working mode optional
- Light sensor and timer programmable
- Battery type: Flood, lead acid, gel, lithium
- Charge and discharge current display

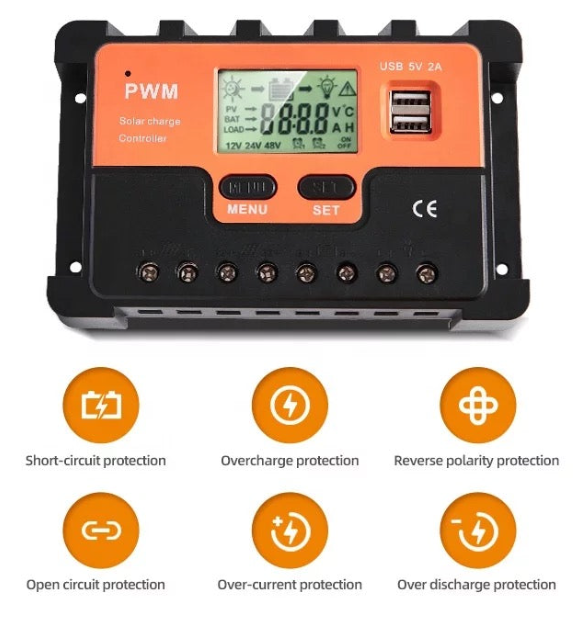

- Overall effective protection
- Rated Voltage:12V/24V
- USB 5V 2A
Technical Data:
- Max. Charge Current : 10A
- System Volate : 12/24V
- Max. Input Voltage: 50V
- Suitable Battery Type: Sealed, GEL, Flood, iron, Ion, Lithium
-LVD: 10.7V (adjustable: 9V~12V)
- LVR: 12.6V (adjustable: 11V~13.5)
- Float Voltage: 13.7(adjustable:13V~15V)
- Boost Charging Voltage: 14.4V
- Battery Over Voltage Protection Value: 16.5V
- Temperature Compensation: -24mV/Degrees Celcius for 12V System
- Charge Type: PWM
- Terminal Scale: 28---10 AWG
- Waterproof Grade: IP32
- Working Temperature: -20 Degrees Celcius --- +55 Degrees Celcius
- Load Over Current Protection: Yes, each two minutes restart once
- Reverse Connection Protection: Yes
What's in the box
1 X AOITS Solar Charge Controller
