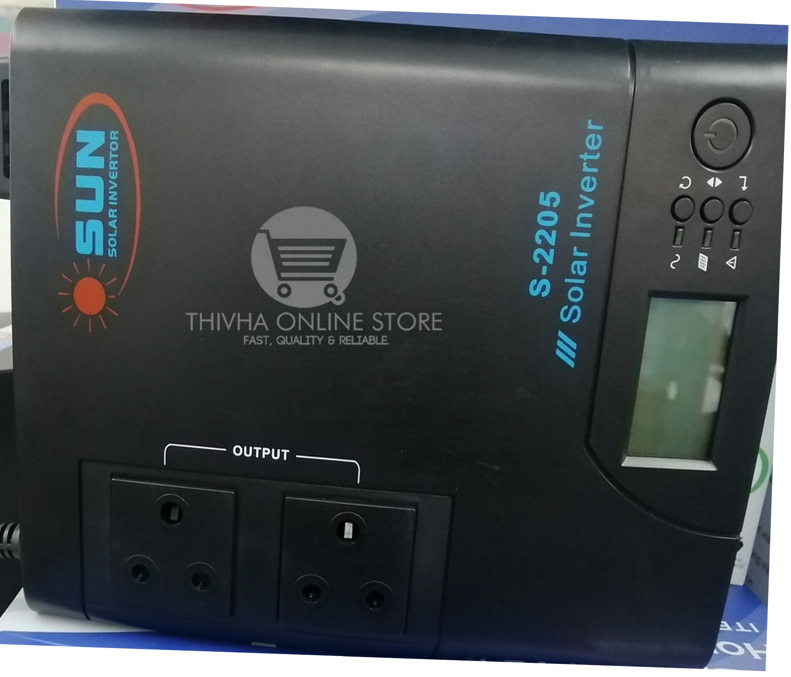

12V 720W/1200VA Solar Inverter With Charger Plus PV Input - SUN
Modifies Sine Wave Inverter with Charger - Backup for Solar Home System

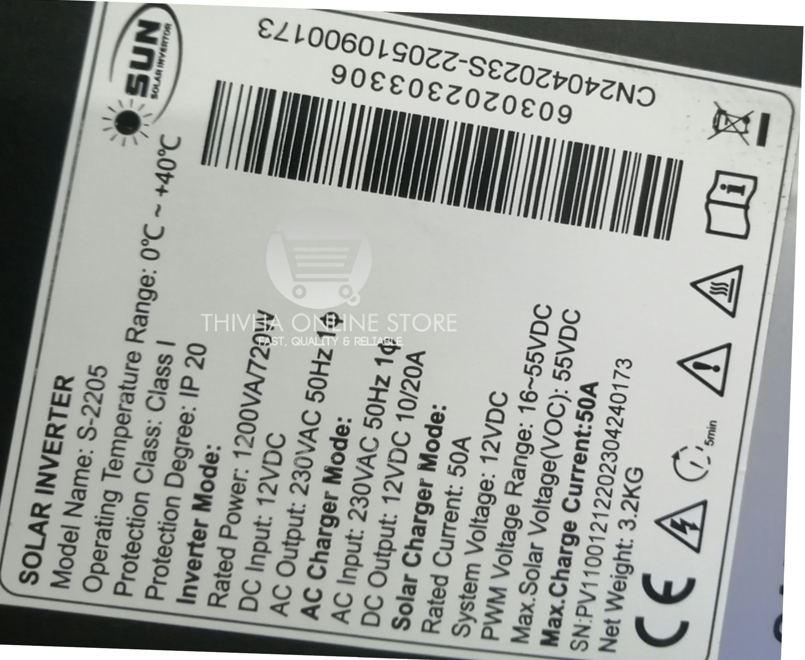

Model Name: S-2205
Operating Temperature: 0 ~ +40 Degrees Celcius
Protection Class: Class I
Protection Degree: IP 20
Inverter Mode
Rated Power: 1200VA/720W
DC Input: 12VDC
AC Output: 230VAc 50Hz
AC Charger Mode
AC Input: 230VAC 50Hz
DC Ouput: 12VDC, 10/20A
Solar Charge Mode
Rated Current: 50A
System Voltage: 12VDC
PWM Voltage Range: 16~55VDC
Max. Solar Voltage (VOC): 55VDC
Max. Charge Current: 50A
Weight: 2.8KG
Warranty: 12 Months Repair Warranty
Warranty Condition:
A certified electrical wireman or master electrician with a current Department of Labor registration is required to install all inverters and batteries. Once installed, a current electrical certificate of compliance (COC) for the installation of the solar or backup system is required. The installation needs to adhere to SANS 10142 in its entirety. If a warranty claim is filed without installation images, a current COC, and documentation that the item was installed by a licensed wireman or master electrician, it may be denied and become void.
