HYBRID INVERTER SOLAR KIT COMBO

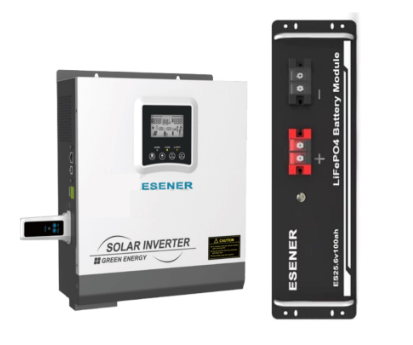

3KVA MPPT ESENER PURE SINE WAVE LOAD SHEDDING COMBO 3000 WATT 1 X 2.56KWH LITHIUM BATTERIES ESENER KIT
Overcome load shedding with this premium hybrid inverter load-shedding Combo
INVERTER SPECIFICATIONS
ESENER Pure Sine Wave Hybrid Inverter 24V 3kw MPPT 60A Maximum 80A 145VDC
This is a multi-function inverter/charger, combining functions of inverter, MPPT 60A solar charger and battery charger to offer uninterruptible power
support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging
current, AC/solar charger priority, and acceptable input voltage based on different applications.
Features:
Rated power: 1-3KW
Pure sine wave output
Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
Bult in MPPT 60A solar charge controller
Combining solar system, AC utility, and battery power source to supply
continuous power
Overload, short circuit and Deep discharge protection
Cold start function
Support USB, RS485 monitoring function
WIFI remote monitoring (optional)
Compatible to generator
(WIFI DONGLE NOT INCLUDED)
Battery Specifications:
Model: ES-25.6V100Ah.
Rated Capacity (5HR): 100 Ah.
Voltage: 25.6V.
Discharge Cutoff Voltage: 20.0V.
Equalized Charge Voltage: 29.2V.
Max. Continuous Charging Current: 100A.
Max. Continuous Discharging Current: 100A.
C Rating: 1.0C.
Display: NO.
Parallel/Series: Parallel and series connection up to "2s2p".
Ports: 1x Positive Socket, 1x Negative Socket, 1x Power switch.
Cells: Li-ion Prismatic cells.
Design Life: +/- 10Years.
Cycle Life @ 1C: +/- 2200 Cycles @ 100% DOD, above 4000 cycles @ 80% DOD.
Certification: UN38.3,IEC,MSDS.
Outer Package Material: Black sheet metal steel case.
Operating Temperature: Charging: 0 to +50C, Discharging: -10 to +50C,Storage: -10 to +50C.
Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting.
Includes Bracket
Size:
48.4 x 42 x 13.3 cm
26kg
Combo includes:
1x 24v 2.56kWh Lithium Battery ESENER (3 Years Warranty)
1x ESENER Pure Sine Wave Hybrid Inverter 24V 3kw MPPT (1 Year Warranty)
