Description:
The 25.6V 200Ah Lithium Iron Phosphate (LiFePO) battery module delivers reliable power storage in a durable wall-mounted format. Designed for advanced energy systems, this 5.12kWh battery is ideal for residential, solar backup, and hybrid storage applications. Supporting both series and parallel configurations (up to 4S4P), it offers excellent scalability and installation flexibility.

Built to outperform traditional battery technologies, this unit provides up to 4000 cycles at 50% Depth of Discharge, extending system longevity while reducing replacement costs. Housed in a robust casing and weighing approximately 27.8kg, it delivers powerful, maintenance-free performance with minimal space requirements.

Key Features:

Stable Voltage Platform: 25.6V nominal with 29.2V charge cut-off

Extended Cycle Life: Up to 4000 cycles at 50% Depth of Discharge

High Energy Output: 5.12kWh storage capacity per module

Wall Mountable Design: Efficient use of vertical space for clean installs

Expandable System: Supports 4 series and 4 parallel connections

Durable Construction: Engineered for long-term stability and safety

Maintenance-Free: No acid, fume emissions, or fluid level checks required

24-Month Warranty: Backed by manufacturer protection for peace of mind

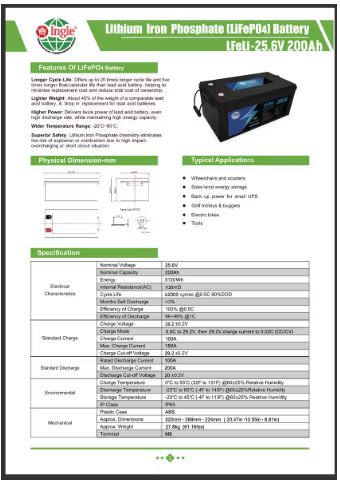

Technical Specifications:

Battery Type: Lithium Iron Phosphate (LiFePO)

Nominal Voltage: 25.6V

Rated Capacity: 200Ah

Energy Output: 5.12kWh

Charge Cut-Off Voltage: 29.2V

Cycle Life: 4000+ (at 50% DOD)

Installation Type: Wall-mountable

Scalability: Up to 4S4P configuration

Dimensions (mm): 522 x 240 x 222

Weight: ~27.8kg

What's in the Box:

1 x 25.6V 200Ah Wall-Mount LiFePO Battery Module
