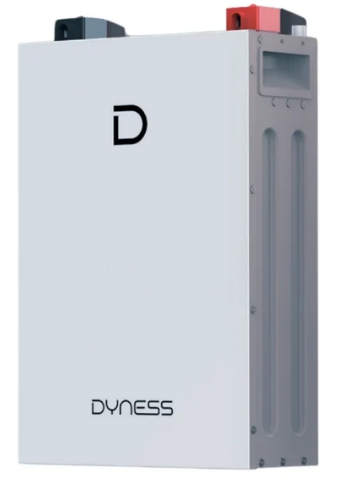

DynessBattery Lithium Ion DL5.0F 5.12KWH 51.2V 100Ah IP20

Dyness: Battery Lithium Ion DL5.0F 5.12KWH 51.2V 100Ah IP20
Elevate your energy storage capability with this advanced, high-performance lithium battery solution, engineered for maximum flexibility, safety, and power output. Designed to adapt seamlessly to your space, it supports Wall Mount, Floor Mount, and Rack Mount configurations while streamlining setup through an easy installation process using only a single bracket.

Product Features:

- Supports Wall Mount, Floor Mount & Rack Mount
- 1C Discharge
- Connect up to 50 Units in Parallel
- Module Free Design
- Integrated Aerosol Fire Suppression
- IP20 Ingress Protection
- Wide Compatibility
- 8000 Cycle Life Span
- Backward Compatible with DL5.0C Range (Without LINK Module)
- 95% DOD
- Easy Installation using only 1 Bracket

PRODUCT SPECIFICATIONS
- Model: DL5.0F
- Battery Type: LiFePO4
- Nominal Battery Energy: 5.12kWh
- Usable Battery Energy: 4.864kWh
- Nominal Capacity: 100Ah
- Nominal Voltage: 51.2V
- Operating Voltage: 44.8V~57.6V
- Recommended Charge & Discharge C Rate: 0.5C (50A)
- Max. Charge C Rate: 0.75C (75A)
- Max. Discharge C Rate: 1C (100A)
- Peak Discharge Current (25°C): 110A, 15s
- Recommended Charge & Discharge Power: 2.56kW
- Max. Charge Power: 3.84kW
- Max. Discharge Power: 5.12kW
- Depth of Discharge (DOD): 95%
- Charge Temp. Range: 0~55°C
- Discharge Temp. Range: -20°C~55°C
- Net Weight: 41kg
- Dimension [W/D/H]: 345/548/146mm
- Protection Level: IP20
- Communication: CAN/RS485
- Cycle Life: ≥8000 Cycles
- User Interface: WIFI+APP (optional)
- Safety Protection: Built-in aerosol fire extinguisher
- Installation: wall-mounted, floor-standing, flexible bracket, rack-mounted
- Expansion: Up to 50 units in parallel
- Certification & Safety Standard: UN38.3/CE-EMC/CE-RED/IEC 62619/IEC 63056/RoHS/REACH
- Compatible Inverters: SMA/Schneider/Victron Energy/Ingeteam/Solis/GoodWe/Growatt/Solplanet/Luxpower/Deye/Apsystem etc.

Standard Warranty            7 Years

Package Size (mm) 345 x 548 146
Weight (kg) 41

Warranties:

7 Years Warranty
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
