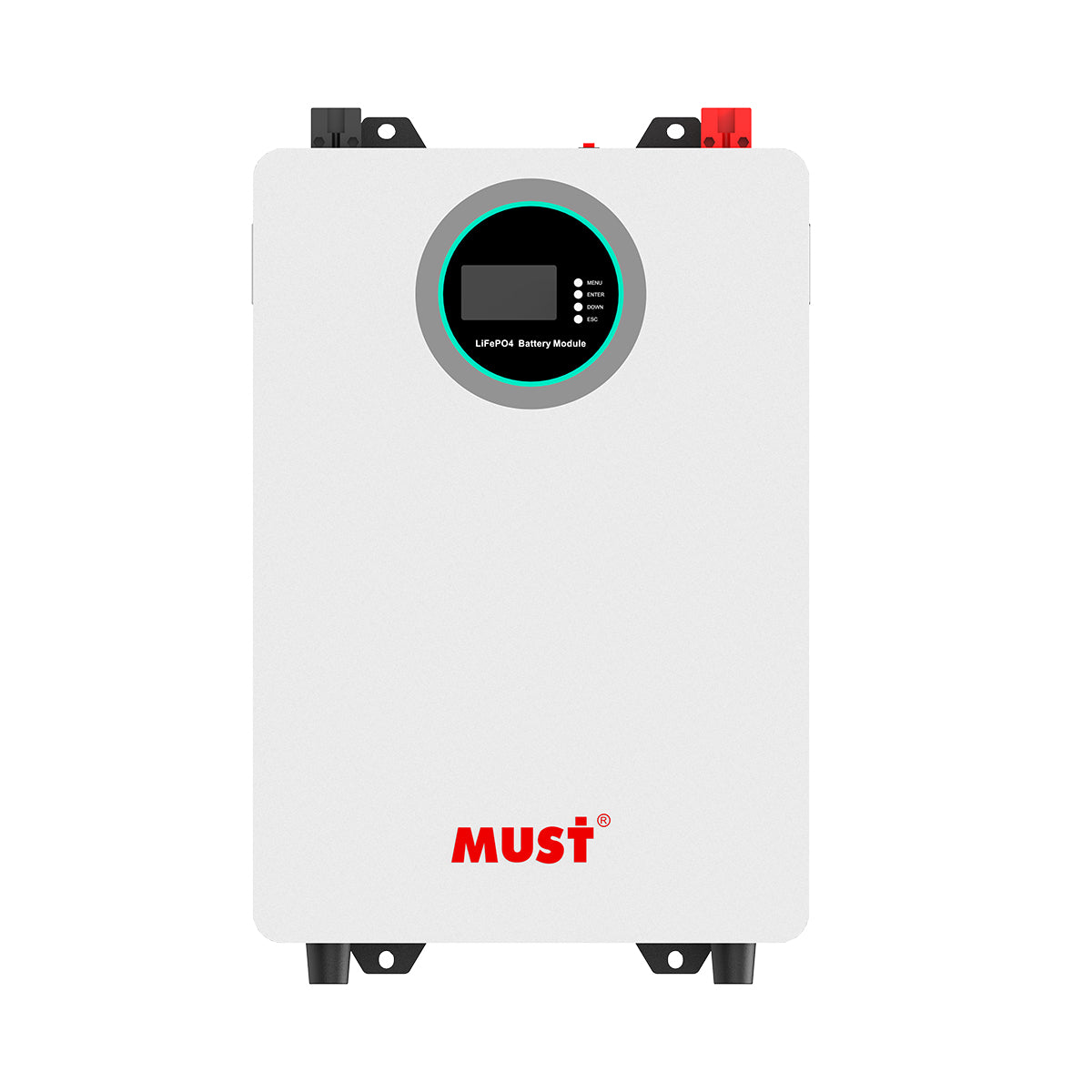

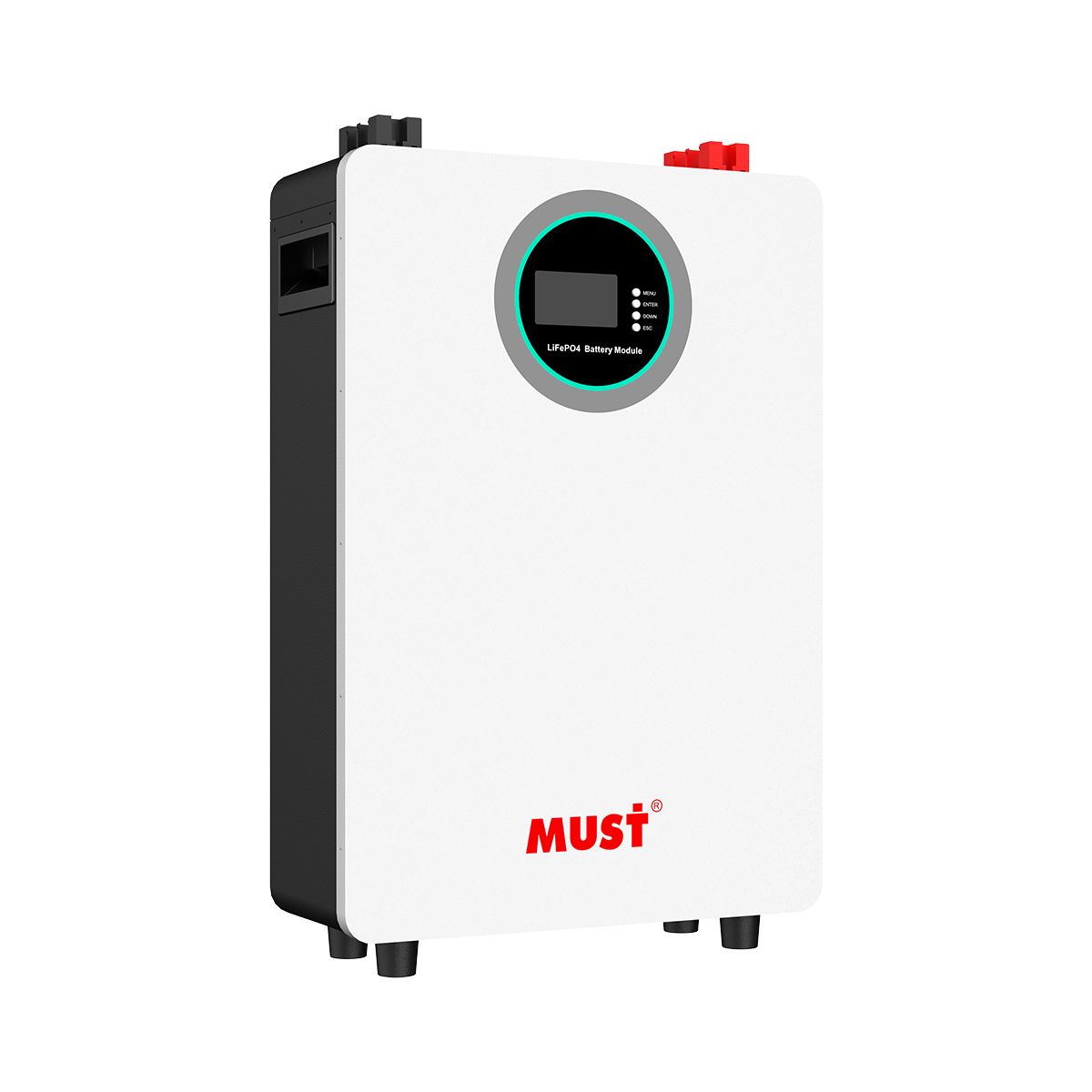

The LP1600SE Series is an elegantly engineered, slim-profile lithium iron phosphate battery module optimized for straightforward residential installations. It introduces advanced auto-networking capabilities that completely eliminate the need for manual DIP switch addressing, ensuring a hassle-free setup and quick maintenance. Boasting a robust 10-year calendar design life with minimized degradation metrics, it represents an outstanding long-term option for reliable micro-grid management.

Description

- Auto-Networking Integration: True plug-and-play discovery removes the   need for complex manual DIP switch mapping during installation.
- 10-Year Calendar Durability: Premium cell formulation delivers minimal   aging and stable power output across a full decade..
- Ultra-Slim Form Factor: Sleek, low-profile machine depth (152mm) ideal   for wall placement in tight corridors or utility closets.
- Simple Bluetooth Linking: Built-in Bluetooth hardware connects   directly with modern smart devices for rapid localized metrics.
- High Parallel Capabilities: Easily clusters up to 15 modules in   parallel using standard CAN and RS485 loops.

Parameter                    Specification
Nominal Voltages Available    51.2V (LP16-48100SE)
Nominal Module Capacity    100Ah   (5120 Wh pack energy)
Maximum Discharge Current    100A continuous
Durability Lifecycle            ≥ 6000 cycles @ 25°C ± 3°C
Chassis Dimensions (W*H*D)    51.2V: 365x550x152 mm
Enclosure Specs / Chassis    IP21 Protection level / SPCC Metal
Communication Array            CAN2.0 / RS232 / RS485 / Bluetooth
Standard Warranty            5 Years

Package Size (mm) 685 x 445 x 217
Weight (kg) 50

Warranties:

5 Years Warranty
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
