Inverter

Hybrid Inverter 24V 3.2KVA 3200W MPPT 100A Inverter Pure Sine Wave - Ecco HP PRO-T Series

The main difference between PWM and MPPT charge control devices is that the MPPT devices are more efficient. MPPT charge control devices have 30 % more efficient in charge efficiency according to PWM type. Panel voltage and battery voltage should be matched in PWM systems.

High Voltage VDC500V
3.2KVA/3200W 100A Pure Sine Wave Solar Inverter

Features
- Pure Sine Wave Solar Inverter
- Output Power Factor 1
- High PV Input Voltage Range (120VDC - 500VDC)
- Built-in 100A MPPT Solar Controller
- Supports Multiple Output Priority: UTL, SOL, SBU, SUB
- Supports Wireless Parallel, Without Extra Sharing of Current Cable
- RS485 Communication for BMS
- Battery Equalization Function to Optimize Battery Performance and Extended Lifecycle

Specifications:

Inverter Mode
- Rated Power: 3200VA / 3200W
- DC Input: 24VDC, 148A
- AC Output: 230VAC, 50/60Hz, 23.5A

AC Charger Mode
- AC Input: 230VAC, 50/60Hz, 23.5A
- DC Output: 27VDC
- Max. Charge Current(AC): 60A Default 30A
- Max. Charge Current(PV+AC): 100A
- AC Output: 230VAC, 50/60Hz, 15.2A

Solar Charge Mode
- Max. PV Array Power: 4000W
- Min. Solar Voltage: 120VDC
- Max. Solar Voltage (VOC): 500VDC
- Max. MPPT Charge Current: 100A

Dimensions ; 425 x 315 x 106
Weight: 9.5kg

Battery

25.6V 100Ah lithium iron battery designed for Inverters and UPS solar systems.

The obvious lead replacement solution a new world of longevity and performance awaits for wide ranging applications from alarm and gate motors to high end boat and camper energy storage. Also suitable for small solar integrated and backup systems

Features

-The 25.6V 100Ah Lithium iron battery is designed for UPS, solar system, portable devices, energy storage and medical
cart applications.
- Last two to four times longer than a lead acid battery.
- Boasts advantages on safety, cycle life, energy density,
temperature range and environmental protection.

Advantages:

- Packed with high performance, long life, safety, and wide temperature range
- High energy density, small size, light weight, no pollution;
- High efficiency, fast charging
- Easy to carry battery case ,
- 10 years design life, Stable performance, maintenance-free

Direction for use:

Charge using the positive and negative ports to connect to your inverter and charge on these ports.

Specifications:

- Energy storage: 2560WH
- Output Voltage: 25.6VDC
- Rated capacity 100ah
- Bulk Absorbtion Rate: 28.4 - 29.2V
- Equalize Voltage: 28.8VDC
- Float Charge: 27.2VDC
- Max Discharge current 100A
- Max Charge current 100A

What's in the box

1 x Ecco LIFELI-24100 Lithium Ion Battery

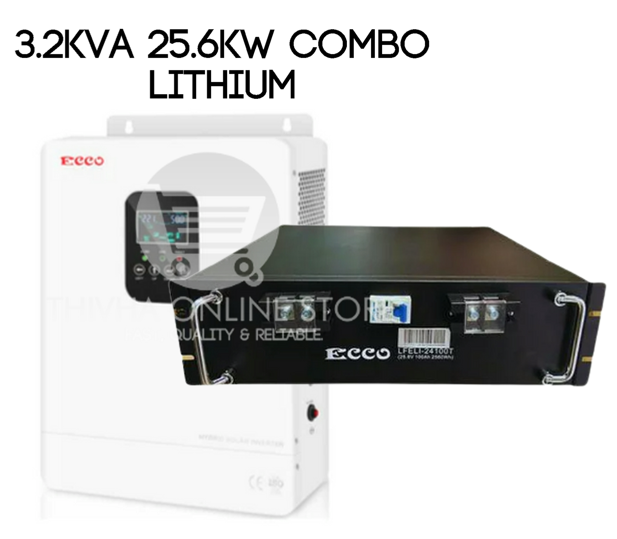

1 x ECCO 3.2KW 24V 100A MPPT Hybrid Solar Inverter
