Hybrid Inverter Specifications:

Hybrid Inverter 48V 5.5 KVA 5500W MPPT 100A Inverter Pure Sine Wave - Ecco

The main difference between PWM and MPPT charge control devices is that the MPPT devices are more efficient. MPPT charge control devices have 30 % more efficient in charge efficiency according to PWM type. Panel voltage and battery voltage should be matched in PWM systems.

Features
Pure sine wave
Power factor 1.0
PV input Voltage 60Vdc-500Vdc
Built-in MPPT 100A
Capable to work without battery
RS485 BMS Communication
Lithium battery activation
Detachable dust cover for harsh environment
WiFi remote monitoring optional
Support multiple output priority: UTL, SOL, SBU, SUB
EQ function to optimize battery performance and extend the lifecycle

Dimensions ; 438 x 295 x 105
Weight: 9kg

It is recommended to use ECCO Batteries and Solar Panels for Quality Guaranteed Results.


Battery Specifications:

Ecco Lithium Ion Phosphate 51.2v 100ah 5.120 KWh Battery LiFePO4

Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/calendar life than a lead acid battery, helping to minimize replacement cost and reduce the total cost of ownership. Lighter Weight: About 40% of the weight of a comparable lead acid battery. A 'drop in' replacement for lead acid batteries. Higher Power: Delivers twice the power of the lead acid battery, even high discharge rate, while maintaining high energy capacity. Wider Temperature Range: -20 C~60 C. Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging, or short circuit situations.

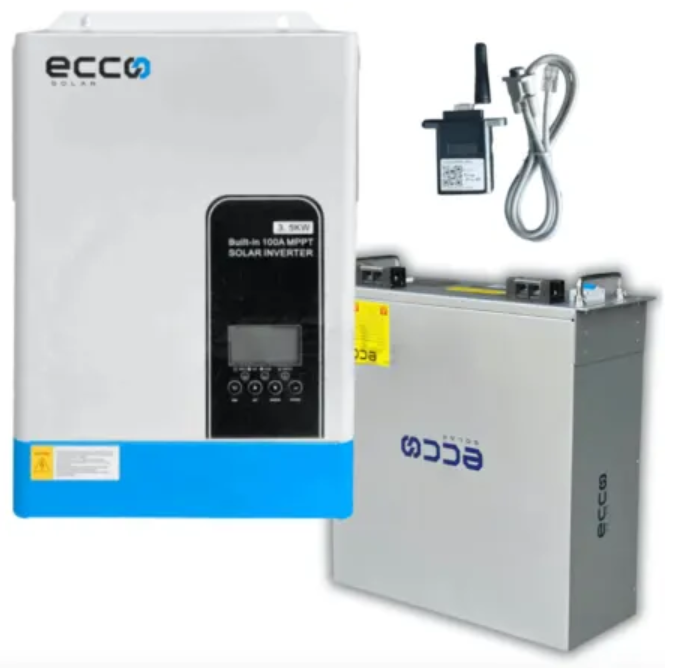

Combo includes:

1X Ecco 51.2v 100ah 5.12kWh Lithium Battery LiFePO4 48-100mb16
(5 Years Warranty)
1x Hybrid Inverter 48V 5.5 KVA 5500W MPPT 100A Inverter Pure Sine Wave - Ecco+Wifi Dongle (2-Year Repair Warranty)

Best Practices to Prolong Battery Life:
- Never discharge your battery below the recommded Depth of Discharge (DOD). 50% for GEL and 80% for Lithium Ion.
- Ensure your battery and the terminals to the Inverter are clean and tightly fafstened.
- Consistently drawing current from a battery without letting it fully charge degrades the battery quicker.
- Use batteries at an ambient temperature of 25 degress Celcius.
- Ensure good ventilation.

GEL batteries are not recommended for use in stage 3-6 load shedding for a prolonged period because the batteries would not get enough time to recharge full. Each loadshedding session is conted as a cycle as the battery is drained when the power is off and starts charging again when the power comes back on.

Warranty Condition:
A certified electrical wireman or master electrician with a current Department of Labor registration is required to install all inverters and batteries. Once installed, a current electrical certificate of compliance (COC) for the installation of the solar or backup system is required. The installation needs to adhere to SANS 10142 in its entirety. If a warranty claim is filed without installation images, a current COC, and documentation that the item was installed by a licensed wireman or master electrician, it may be denied and become void.
